1) Door lock sensor

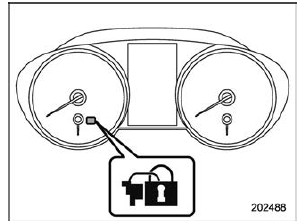

Security indicator light
If any of the doors or the rear gate is not fully closed, an electronic chirp sounds five times, the hazard warning flashers flash five times to alert you that the doors (or the rear gate/trunk lid) are not properly closed. When you close the door, the system will automatically arm and doors will automatically lock. |
Component
1. AT SELECT LEVER(1)Grip ASSY(8)Cushion solenoid(15)Nut(2)Clamp grip pin(9)Solenoid unit (3)Rod COMPL(10)Selector lever COMPLTightening torque: N·m (kgf-m, ft-lb)(4)Cover grip AT(11)Snap pinT1:7.5 (0.8, 5.5)(5)Indicator cover(12)WasherT2:18 (1.8, 13.3)(6)Housing(13)Select cable (7)Blind(14 ...
