Subaru Legacy BN/BS (2015-2019) Service Manual: 13

Subaru Legacy BN/BS (2015-2019) Service Manual / Cruise control system (diagnostics) / Diagnostic procedure with cancel code / 13

Detected when clutch pedal is depressed or malfunction related to clutch switch occurs.

TROUBLE SYMPTOM:

• Cruise control cannot be set.

• Cruise control cannot be released.

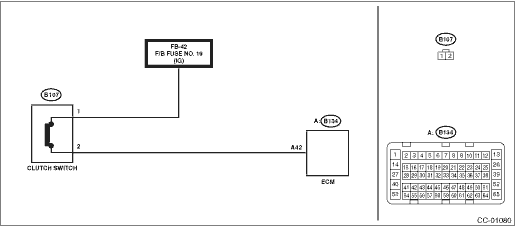

WIRING DIAGRAM:

Cruise control system Cruise Control System > WIRING DIAGRAM

STEP	CHECK	YES	NO
1.CHECK CLUTCH SWITCH. Check the clutch switch. Clutch Switch	Is the clutch switch and installation position OK-	Diagnostic Procedure with Cancel Code > 13	Replace the clutch switch. Or adjust the installation position.
2.CHECK CLUTCH SWITCH CIRCUIT. 1) Turn the ignition switch to OFF. 2) Disconnect the clutch switch harness connector. 3) Turn the ignition switch to ON. 4) Measure the voltage between harness connector terminal and chassis ground. Connector & terminal (B107) No. 1 (+) — Chassis ground (−):	Is the voltage 10 V or more-	Diagnostic Procedure with Cancel Code > 13	• Check fuse No. 19 (in fuse & relay box). • Check open or shorted circuit of harness between clutch switch and fuse & relay box.
3.CHECK CLUTCH SWITCH CIRCUIT. 1) Turn the ignition switch to OFF. 2) Disconnect the harness connector of ECM. 3) Measure the resistance between clutch switch harness connector terminal and ECM harness connector terminal. Connector & terminal (B107) No. 2 — (B137) No. 15:	Is the resistance less than 10 --	Replace the ECM. Engine Control Module (ECM) Engine Control Module (ECM)	Repair the harness.
