Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

1. FRONT

1. Insert the rubber assembly - windshield wiper onto the blade - windshield wiper so that the stopper is in the position shown in the figure.

2. Make sure the rubber assembly - windshield wiper is securely fastened to the pull stopper (A).

2. REAR

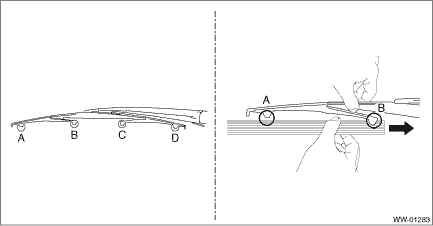

1. Insert the rubber assembly - rear wiper into claw (B).

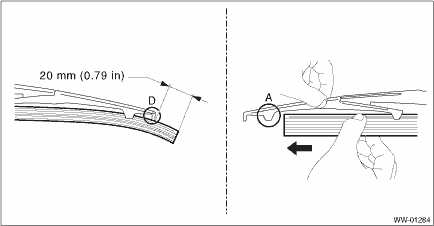

2. Insert the rubber assembly - rear wiper until its top end protrudes approx. 20 mm (0.79 in) from stopper (D).

3. Insert the rubber assembly - rear wiper into claw (A).

Removal
1. FRONTNOTE:Since the arm assembly - windshield wiper LH and RH can interfere with each other, remove the driver’s side first.1. Lift up the locking clip (A).2. Turn the blade assembly - windsh ...

Installation
Install each part in the reverse order of removal.CAUTION:Make sure the locking clip is secured.NOTE:Since the arm assembly - windshield wiper LH and RH can interfere with each other, install the pass ...

Other materials:

Adjustment
NOTE:Adjustment should be performed on the fender COMPL - front, lock assembly - front hood and buffer - front hood, because adjustment cannot be performed on the hinge COMPL - front hood.Adjust the clearance around the hood COMPL - front as follows.PartStandardAHood COMPL - front to Bumper face fro ...
