Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Reduction driven gear / Disassembly

1. Flatten the tab of the lock nut.

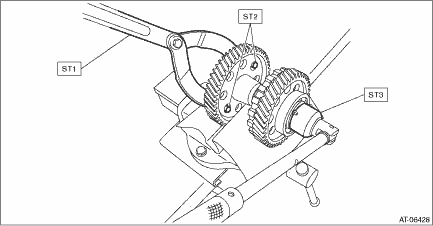

2. Using the ST, counter the rotation of the reduction driven gear assembly, and remove the lock nut.

ST1 18355AA000PULLEY WRENCH
ST2 18334AA000PIN SET
ST3 499987003SOCKET WRENCH (35)

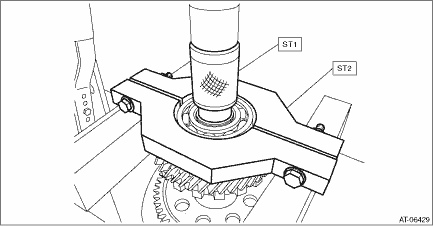

3. Remove the ball bearing using ST.

ST1 499757002INSTALLER
ST2 498077300REMOVER

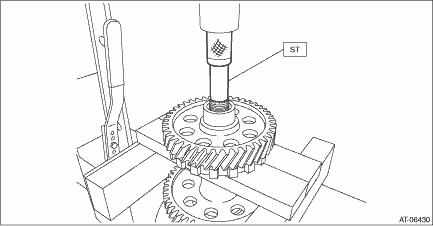

4. Using the ST, remove the parking gear and transfer drive gear.

ST 899864100REMOVER

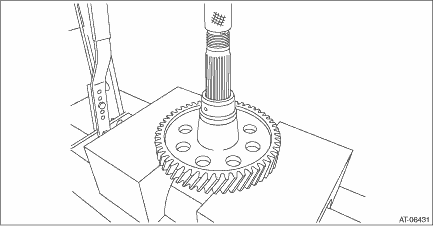

5. Remove the collar.

NOTE:

When collar has been removed, do not reuse the reduction driven gear and/or shaft, and replace it with reduction driven gear COMPL.

6. Remove the snap ring from reduction driven gear.

Inspection
• Check the ball bearing for smooth rotation.• Check the ball bearing for excessive looseness.• Make sure each gear is not broken or damaged. ...

Assembly
1. Install the snap ring to reduction driven gear.NOTE:Use a new reduction driven gear COMPL.2. Using the ST, attach the collar.NOTE:Attach the collar in the correct direction.ST 899580100INSTALLER ...
