Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Intake manifold / Disassembly

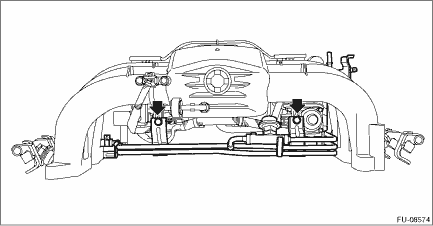

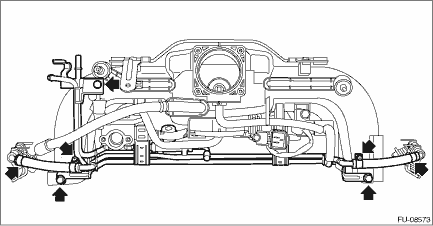

1. Remove the fuel injector pipe and the fuel hose, and remove the fuel pipe assembly.

2. Remove the engine harness. General Description > COMPONENT

3. Remove the EGR control valve. EGR Control Valve > REMOVAL

4. Remove the EGR pipe B. EGR Pipe > REMOVAL

5. Remove the manifold absolute pressure sensor. Manifold Absolute Pressure Sensor > REMOVAL

6. Remove the purge control solenoid valve. Purge Control Solenoid Valve > REMOVAL

Inspection

1. Check that the intake manifold and fuel pipe assembly have no deformation, cracks and other damages.2. Check that the hose has no cracks, damage or loose part. ...
