Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

CAUTION:

When fixing the steering gearbox assembly in a vise, apply a wooden piece on the flange portion.

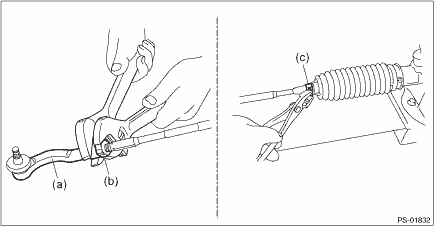

1. Remove the tie-rod end (a) and lock nut (b) from the steering gearbox assembly.

2. Remove the clip - boot tie-rod (c) located outside the boot - steering gearbox using the pliers, and then slide the boot - steering gearbox to the tie-rod end side.

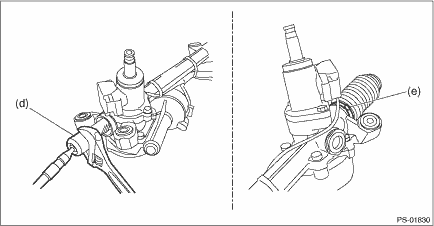

3. Remove the tie-rod (d) from the gearbox assembly.

(1) Using a flat tip screwdriver, remove the band - boot (e) from the boot - steering gearbox.

NOTE:

Replace the boot - steering gearbox or the band - boot (e) if there is damage, cracks or deterioration.

(2) Remove the tie-rod (d).

Inspection
1. UNIT INSPECTIONCheck components for wear, damage or other faults. Adjust or replace if necessary.2. LIMITMake a measurements as follows. If it exceeds the specified service limits, adjust or replac ...

Assembly
1. Install the tie-rod into rack.Tightening torque:90 N·m (9.2 kgf-m, 66.4 ft-lb)NOTE:Check the mating face of rack and tie-rod for foreign matter such as dust etc.2. Apply a coat of grease to ...
