Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Power assisted system (power steering) (diagnostics) / Electrical component location location

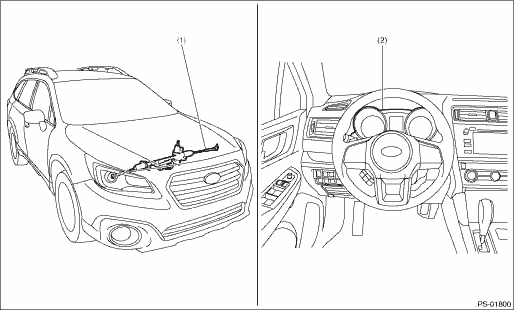

(1)

Steering gearbox (including power steering control module)

(2)

STEERING warning light

Clear memory mode operation

1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the vehicle information and select «Confirmed».3. On «Main Menu» display, select «Each System Check».4. O ...

Inspection mode procedure

1. Start the engine.2. Idle the engine for five seconds or more.3. Operate the steering wheel from side to side.4. Reproduce the malfunction occurrence condition as much as possible. ...
