Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h4do) / Front oxygen (a f) sensor / Inspection

1. Check that the front oxygen (A/F) sensor has no deformation, cracks or other damages.

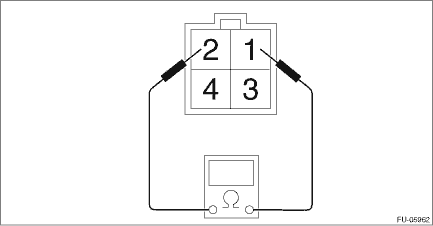

2. Measure the resistance between front oxygen (A/F) sensor terminals.

Terminal No.	Standard
1 and 2	2.0+0.42 −0.2 - (when 20°C (68°F))
