Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

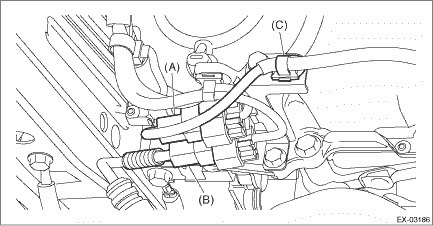

1. Disconnect the ground terminal from battery sensor. NOTE 2. Lift up the vehicle. 3. Remove the under cover. Front Under Cover > REMOVAL 4. Disconnect the front oxygen (A/F) sensor connector, and remove the clip holding the front oxygen (A/F) sensor harness.

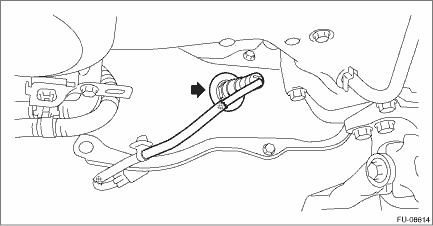

5. Lower the vehicle. 6. Apply spray-type lubricant (004301003) or equivalent to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more. 7. Remove the front oxygen (A/F) sensor. CAUTION: When removing the front oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.
|
Inspection
1. Check that the front oxygen (A/F) sensor has no deformation, cracks or other damages.2. Measure the resistance between front oxygen (A/F) sensor terminals.Terminal No.Standard1 and 22.0+0.42 &minus ...
