1. Check that the fuel injector has no deformation, cracks or other damages.

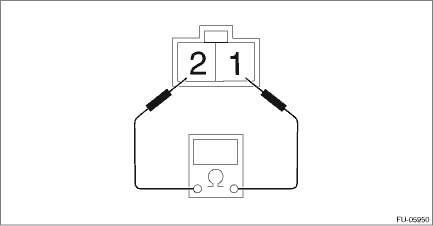

2. Measure the resistance between fuel injector terminals.

Terminal No.	Standard
1 and 2	Approx. 12.0 - (when 20°C (68°F))

Removal

1. Release the fuel pressure. Fuel > PROCEDURE2. Disconnect the ground terminal from battery sensor. NOTE3. Open the fuel filler lid and remove the fuel filler cap.NOTE:This operation is required to ...

Installation

1. Install the fuel injector to the fuel pipe.NOTE:Use new O-rings and rubbers.2. Install the fuel injector and fuel pipe as a unit, and install the bolt securing the fuel pipe to the cam carrier.NOTE ...
