1. Check that the oil control solenoid has no deformation, cracks or other damages.

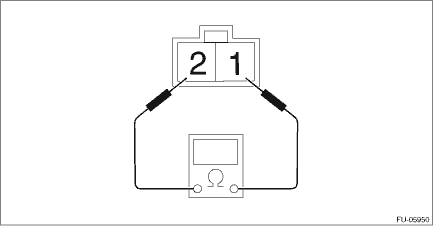

2. Measure the resistance between the oil control solenoid terminals.

Terminal No.	Standard
1 and 2	7.25±0.4 - (when 20°C (68°F))

Removal

CAUTION:If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.1. Disconnect the ground terminal from battery sensor. NOT ...

Installation

1. Install the intake oil control solenoid to the chain cover, and connect the connector to the intake oil control solenoid.NOTE:• Use new O-rings.• Apply engine oil to O-ring.Tightening t ...
