1. Check that the EGR control valve has no deformation, cracks or other damages.

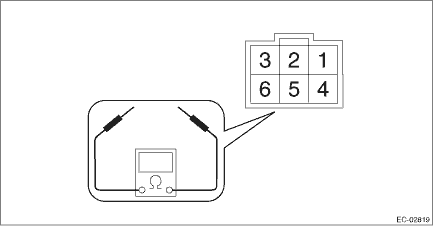

2. Measure the resistance between EGR control valve terminals.

Terminal No.	Standard
2 and 1	22±2 -
2 and 3	22±2 -
5 and 4	22±2 -
5 and 6	22±2 -

Removal

1. Disconnect the ground terminal from battery sensor. NOTE2. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.3. Remove the air intake boot from the air cleaner ca ...

Installation

1. Install the EGR pipe adapter to the EGR control valve.NOTE:Use a new gasket.Tightening torque:19 N·m (1.9 kgf-m, 14.0 ft-lb)2. Install the EGR control valve to the intake manifold assembly, ...
