1. Check that the EGR control valve has no deformation, cracks or other damages.

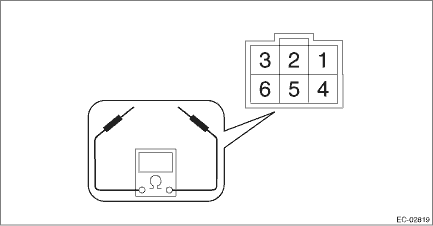

2. Measure the resistance between EGR control valve terminals.

Terminal No.	Standard
2 and 1	22±2 -
2 and 3	22±2 -
5 and 4	22±2 -
5 and 6	22±2 -

Removal

1. Remove the collector cover.(1) Carefully pull up the rear of collector cover at two positions (A).(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.2. ...

Installation

1. Install the EGR control valve, and connect the connector to the EGR control valve.NOTE:Use a new gasket.Tightening torque:19 N·m (1.9 kgf-m, 14.0 ft-lb)2. Install the EGR pipe A. EGR Pipe > ...
