1. WASHER PUMP

Apply battery voltage to the connector terminal of the motor pump assembly - washer, and make sure that the motor operates.

2. WASHER FLUID LEVEL SENSOR

1. Check the connection status of washer fluid level sensor connector.

2. Does the low washer fluid warning light illuminate after draining the washer fluid- And does the low washer fluid warning light go off after refilling the washer fluid-

• Yes > Normal operation.

• No > Perform step 3.

3. Using a tester, measure the voltage of the washer fluid level sensor connector.

(1) Is the voltage approx. 8.5 V or more-

• Yes > Perform step 4.

• No > Check harness, meter and integrated unit, and replace if necessary.

4. Does the meter indicator illuminate if you short the washer fluid level sensor connector-

• Yes > Perform step 5.

• No > Check meter and integrated unit, and replace if necessary.

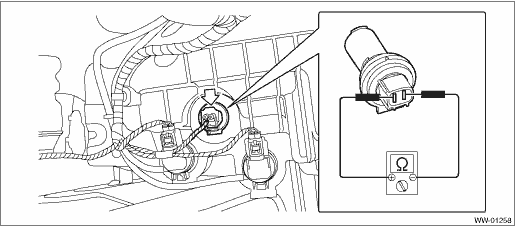

5. Using a tester, measure the resistance of the washer fluid level sensor.

(1) Turn over the mud guard.

(2) Measure the resistance of the washer fluid level sensor.

Amount of washer fluid in the tank	Standard
No remaining quantity (ON)	Less than 10 -
There is remaining quantity (OFF)	1 M- or more

(3) Is the resistance within the standard-

• Yes > Normal operation.

• No > Replace the washer level sensor.
