1. WASHER TANK

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the bumper face - front. Front Bumper > REMOVAL

3. Remove the tank - washer assembly.

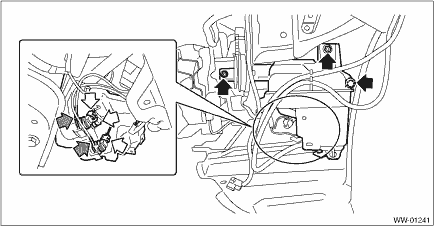

(1) Press the claw and remove the clip of the holder - windshield washer tank.

(a)	Vehicle body side
(b)	Washer tank side

(2) Disconnect the connector from the motor pump assembly - washer and the sensor - washer tank, and then remove the harness clip.

(3) Prepare a container before disconnecting the hose - washer, and drain all washer fluid in the tank - washer.

(4) Remove the bolt and nuts and remove the tank - washer assembly.

2. WASHER MOTOR AND HOSE

1. Disconnect the ground terminal from battery sensor. NOTE

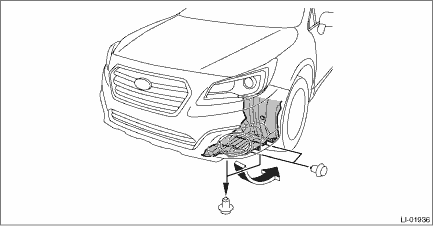

2. Remove the clips, and turn over the mud guard - front LH.

3. Disconnect the connector from the motor pump assembly - washer and remove the harness clip.

4. Prepare a container before disconnecting the hose - washer, and drain all washer fluid in the tank - washer.

5. Remove the motor pump assembly - washer.

6. Replace the washer hose if necessary.

3. WASHER FLUID LEVEL SENSOR

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the clips, and turn over the mud guard - front LH.

3. Disconnect the connector from the sensor - washer tank, and remove the harness clip.

4. Prepare a container before disconnecting the hose - washer, and drain all washer fluid in the tank - washer.

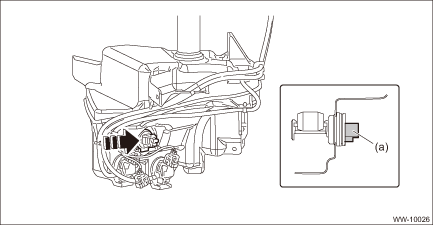

5. Push the section (a) in the direction of the arrow with a thick towel or the like to remove the sensor - washer tank.

CAUTION:

Do not hit or apply any impact to the sensor - washer tank, because it has a poor resistance to impact. Sensor internal parts may be damaged when an impact is applied.

1. WASHER PUMPApply battery voltage to the connector terminal of the motor pump assembly - washer, and make sure that the motor operates.2. WASHER FLUID LEVEL SENSOR1. Check the connection status of w ...
