Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. Install the thrust bearing.

NOTE:

Make sure to install in the right direction.

2. Install the transfer clutch assembly.

3. Select the transfer driven gear shim. Transfer Clutch > ADJUSTMENT

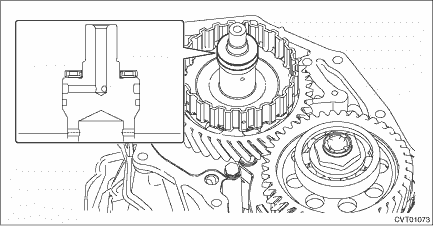

4. Attach the selected transfer driven gear shim to extension case with vaseline.

5. Remove the transfer clutch assembly.

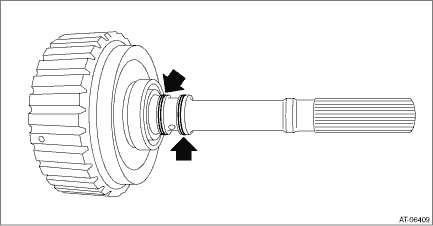

6. Install the seal ring to the transfer clutch assembly.

NOTE:

Use new seal rings.

When installing the seal rings, do not expand the seal rings too much.

Apply CVTF to the seal rings.

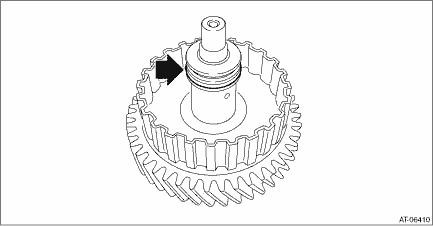

7. Install the seal ring to the transfer driven gear assembly.

NOTE:

Use new seal rings.

When installing the seal rings, do not expand the seal rings too much.

Apply CVTF to the seal rings.

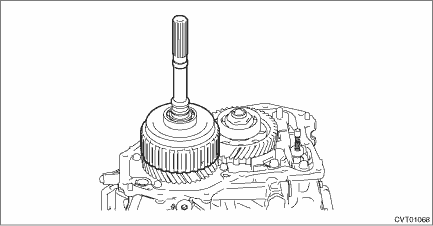

8. Install the transfer clutch assembly.

9. Install the extension case. Extension Case > INSTALLATION

10. Install the transmission assembly. Automatic Transmission Assembly > INSTALLATION

Adjustment
1. Install the transfer clutch assembly to the extension case with the transfer driven gear shims and thrust bearings removed.2. Install the thrust bearing.NOTE:Make sure to install in the right direc ...

Inspection
• Inspect the drive plate facing for wear and damage.• Driven plate for discoloration (burned color)• Make sure the snap ring is not worn and the return spring has no permanent disto ...
