Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

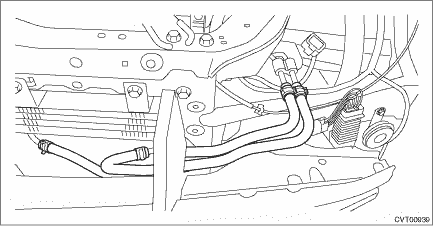

CAUTION: When installing the CVTF cooler pipe assembly on vehicle side, be careful not to bend the A/C pipe. 1. Install the CVTF cooler pipe assembly to vehicle. Tightening torque: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

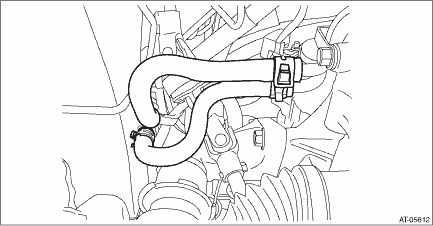

2. Install the A/C pipe to clip. 3. Install the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose. (OUTBACK model) NOTE: Use new CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.

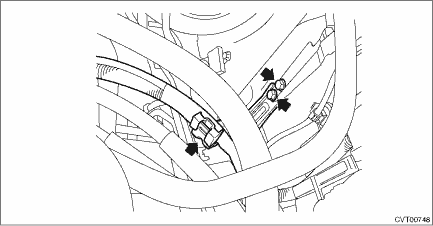

4. Install the headlight assembly LH. (OUTBACK model) Headlight Assembly > INSTALLATION 5. Install the front bumper. (OUTBACK model) Front Bumper > INSTALLATION 6. Install the battery cable bracket, and install the battery cable clip to the bracket. Tightening torque: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

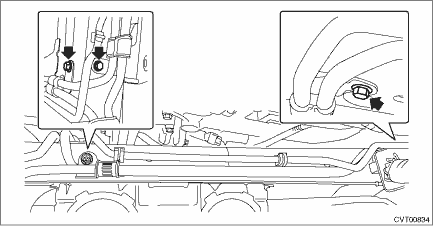

7. Lift up the vehicle. 8. Install the CVTF CVT inlet hose and CVTF CVT outlet hose. NOTE: Use new CVTF CVT inlet hose and CVTF CVT outlet hose.

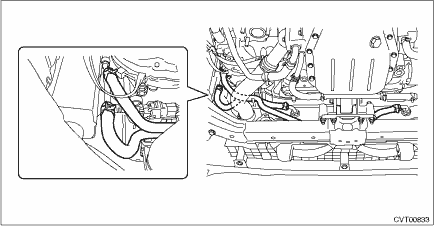

9. Install the CVTF radiator inlet hose and CVTF radiator outlet hose on radiator side. NOTE: Use new CVTF radiator inlet hose and CVTF radiator outlet hose.
10. Install the front exhaust pipe. Front Exhaust Pipe > INSTALLATION 11. Lower the vehicle. 12. Install the engine coolant reservoir tank. Reservoir Tank > INSTALLATION 13. Install the battery and battery box. Battery > INSTALLATION 14. Adjust the CVTF level and check there is no leakage. CVTF > ADJUSTMENT |
Inspection
Repair or replace any faulty hoses, pipes, and clamps found in the inspection below.• Check for CVTF leaks in joints at the transmission, radiator, CVTF cooler (air cool), pipes, and hoses.&bull ...
