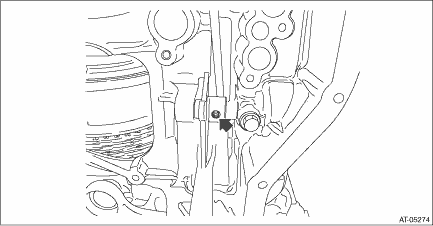

1. Install the detent spring to the transmission case.

Tightening torque:

7 N·m (0.7 kgf-m, 5.2 ft-lb)

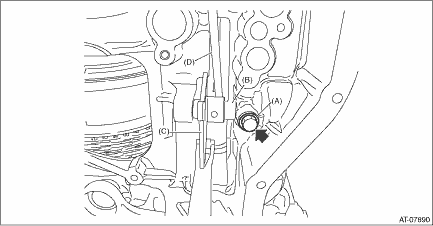

2. Install the manual plate, parking rod, range select lever and bolt.

Tightening torque:

7 N·m (0.7 kgf-m, 5.2 ft-lb)

(A)	Bolt
(B)	Range select lever
(C)	Manual plate
(D)	Parking rod

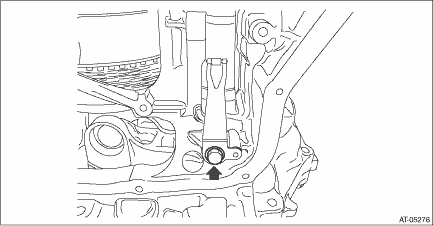

3. Install the spring pin.

NOTE:

Use new spring pin.

4. Install the inhibitor switch. Inhibitor Switch

5. Adjust the inhibitor switch. Inhibitor Switch

6. Install the control valve body and oil pan. Control Valve Body > INSTALLATION

7. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION

Inspection

Make sure that the manual lever and detent spring are not worn or otherwise damaged. ...
