1. Install the TCM.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

2. Install the harness connector to TCM.

NOTE:

• Install the connector in the reverse order of removal.

• Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.

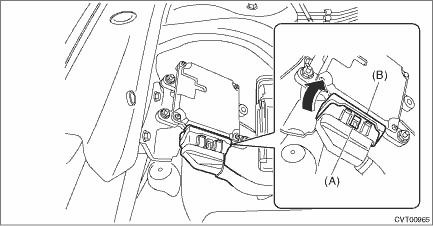

(A)	Lock button
(B)	Lock lever

3. Install the air cleaner case. Air Cleaner Case > INSTALLATION

4. Connect the ground terminal to battery sensor. NOTE

5. Perform the operation of AT learning mode. Learning Control

Removal

1. Disconnect the ground terminal from battery sensor. NOTE2. Remove the air cleaner case. Air Cleaner Case > REMOVAL3. Move the lock lever in the arrow direction while pressing the lock button, and ...

Transmission harness

...
