Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Transmission control module (tcm) / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the air cleaner case. Air Cleaner Case > REMOVAL

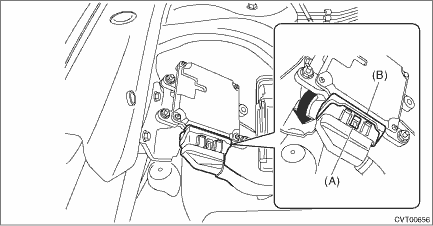

3. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

(A)	Lock button
(B)	Lock lever

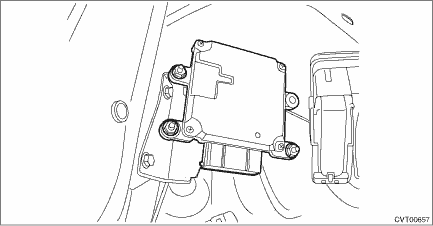

4. Remove the TCM.

Transmission control module (tcm)

...

Installation

1. Install the TCM.Tightening torque:7.5 N·m (0.8 kgf-m, 5.5 ft-lb)2. Install the harness connector to TCM.NOTE:• Install the connector in the reverse order of removal.• Move the lo ...
