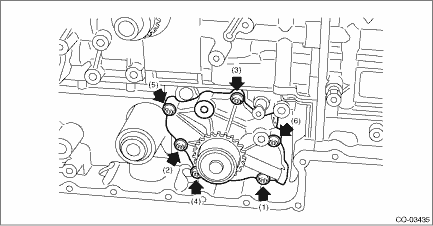

1. Install the water pump to the oil pan upper, and tighten the bolts in the numerical order as shown in the figure.

NOTE:

Use a new gasket.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

2. Install the timing chain assembly. Timing Chain Assembly > INSTALLATION

3. Install the chain cover. Chain Cover > INSTALLATION

4. Connect the ground terminal to battery sensor. NOTE

5. Fill engine coolant. Engine Coolant > REPLACEMENT

6. Install the collector cover.

Inspection

1. Check the water pump bearing for smooth rotation.2. Check the water pump sprocket for abnormalities.3. Make sure the impeller is not abnormally deformed or damaged. ...
