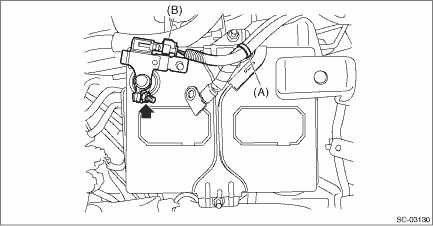

1. Install the battery sensor, and connect the connector (B) to the battery sensor.

Tightening torque:

6 N·m (0.6 kgf-m, 4.4 ft-lb)

2. Attach the clip (A) to the battery holder.

3. Connect the ground terminal to battery sensor. NOTE

Inspection

Check the battery sensor for deformation, cracks and any other damage. ...
