Subaru Legacy BN/BS (2015-2019) Service Manual: Installation
1. Temporarily tighten the nuts which secure the center exhaust pipe to the front exhaust pipe. NOTE: Use a new gasket.

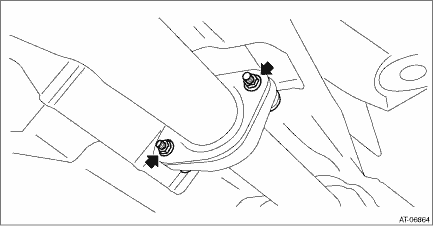

2. Install the bolts, springs, and nuts which secure the rear exhaust pipe to the center exhaust pipe. NOTE: Use a new gasket. Tightening torque: 18 N·m (1.8 kgf-m, 13.3 ft-lb)

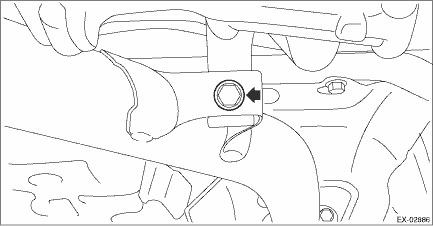

3. Tighten the bolts which secure the center exhaust pipe to the hanger bracket. Tightening torque: 35 N·m (3.6 kgf-m, 25.8 ft-lb)

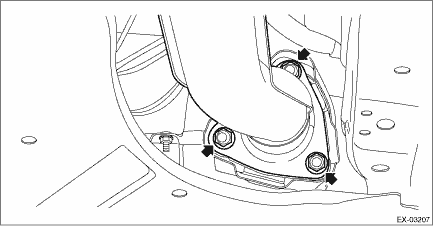

4. Tighten the nuts which secure the center exhaust pipe to the front exhaust pipe. Tightening torque: 42.5 N·m (4.3 kgf-m, 31.3 ft-lb)
|
Assembly
Install each cover to the center exhaust pipe.Tightening torque:13 N·m (1.3 kgf-m, 9.6 ft-lb) ...
Inspection
1. Check the connections and welded parts for exhaust leaks.2. Make sure there are no holes or rusting. ...
