1. Install the arm assembly - windshield wiper.

NOTE:

Since the arm assembly - windshield wiper LH and RH can interfere with each other, install the passenger’s side first.

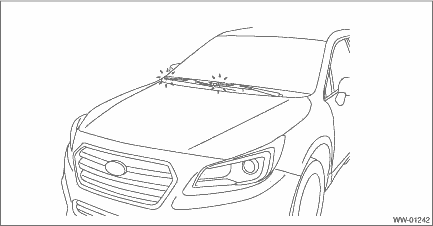

(1) Assemble the arm assembly - windshield wiper so that the blade assembly - windshield wiper is aligned to the ceramic print point mark of the windshield glass.

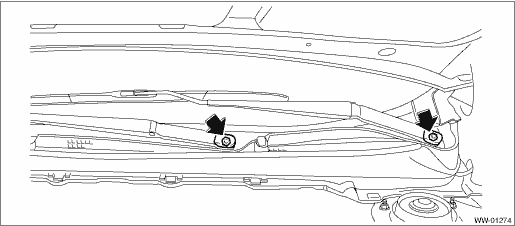

(2) Tighten the arm assembly - windshield wiper to specified torque and install the cap.

Tightening torque:

22 N·m (2.2 kgf-m, 16.2 ft-lb)

2. Check the position of windshield wiper. Front Wiper Arm > ADJUSTMENT

Adjustment

1. Operate the windshield wiper once.2. Check that the wiper blade is aligned with the point mark.3. If the wiper blade is not aligned with the point mark, perform the removal and installation of the ...
