1. Operate the windshield wiper once.

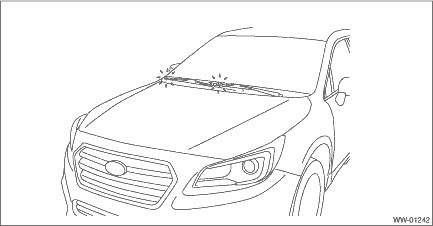

2. Check that the wiper blade is aligned with the point mark.

3. If the wiper blade is not aligned with the point mark, perform the removal and installation of the windshield wiper. Front Wiper Arm > REMOVAL

Removal

1. Remove the cover - windshield wiper arm.2. Remove the nuts, and remove the arm assembly - windshield wiper.NOTE:Since the arm assembly - windshield wiper LH and RH can interfere with each other, re ...

Installation

1. Install the arm assembly - windshield wiper.NOTE:Since the arm assembly - windshield wiper LH and RH can interfere with each other, install the passenger’s side first.(1) Assemble the arm ass ...
