Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiper and washer systems / Front wiper arm / Removal

1. Remove the cover - windshield wiper arm.

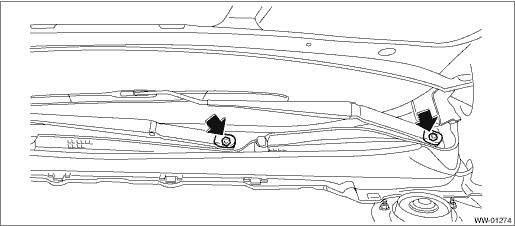

2. Remove the nuts, and remove the arm assembly - windshield wiper.

NOTE:

Since the arm assembly - windshield wiper LH and RH can interfere with each other, remove the driver’s side first.
