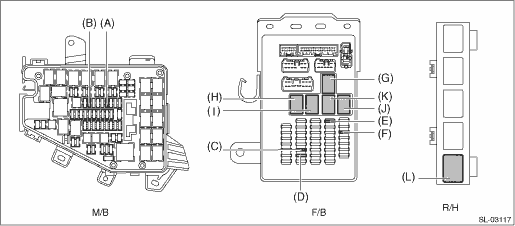

Main fuse box (M/B)

Fuse 15 A (body integrated unit)

(A)

Fuse 15 A (body integrated unit)

(B)

Fuse & relay box (F/B)

Fuse 10 A (body integrated unit, immobilizer antenna)

(C)

Fuse 7.5 A (keyless access CM)

(D)

Fuse 7.5 A (immobilizer control module)

(E)

Fuse 7.5 A (body integrated unit)

(F)

IG relay 1

(G)

IG relay 2

(H)

Starter relay

(I)

Accessory relay 1

(J)

Accessory relay 2

(K)

Relay holder (R/H)

Starter cut relay

(L)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit

Relay and fuse
...

Inspection
1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse.NOTE:If the fuse is blown again, check the system wiring harness.2. CHECK RELAY1. Measure the resista ...
