Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Air breather hose / Removal

1. FRONT DIFFERENTIAL SIDE

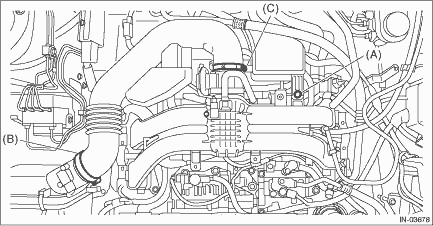

1. Remove the clip (A), and loosen the clamps (B) and (C).

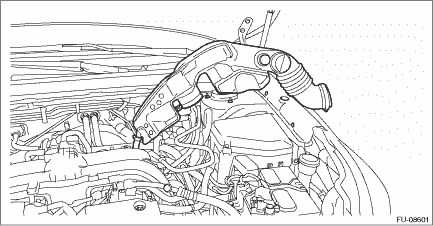

2. Remove the air intake boot assembly, and move it to the left side wheel apron.

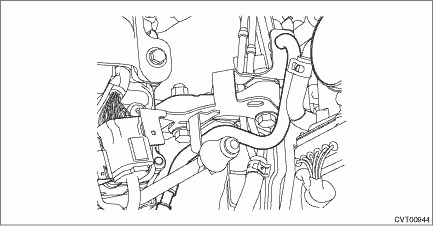

3. Remove the air breather hose.

2. TRANSMISSION CASE SIDE

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

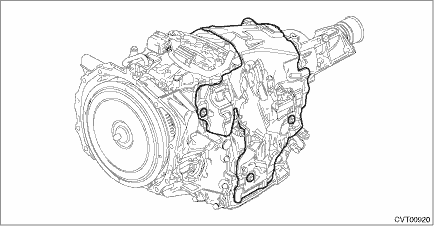

2. Remove the transmission case cover.

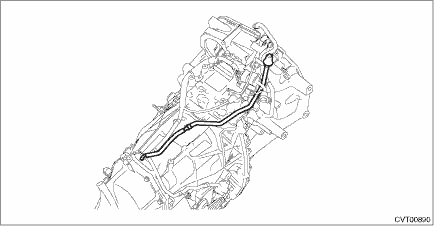

3. Remove the air breather hose.

Inspection

Check the hose for peeling, crack or clogging. ...
