1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Set the ST.

NOTE:

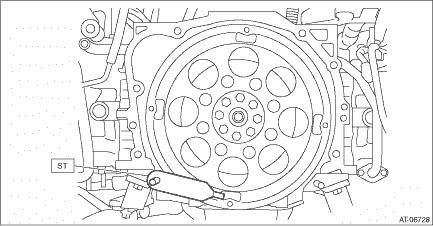

Set the ST to the drive plate referring to the illustration.

ST 498497300

CRANKSHAFT STOPPER

3. Remove the drive plate and reinforcement drive plate.
