Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Transfer clutch / Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the extension case. Extension Case > REMOVAL

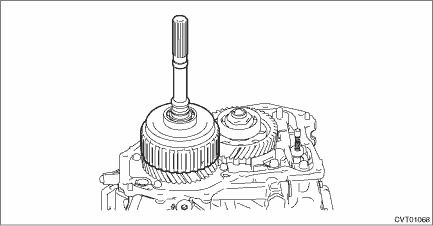

3. Remove the transfer clutch assembly.

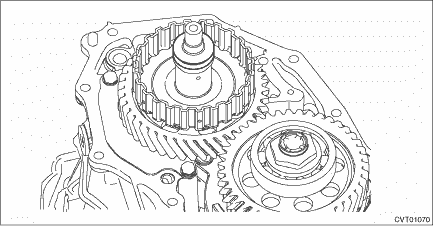

4. Remove the thrust bearing.

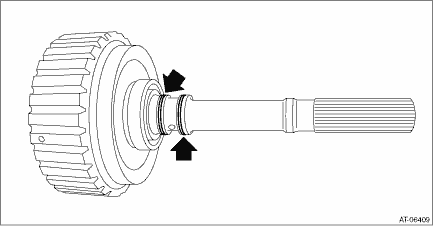

5. Remove the seal ring from transfer clutch assembly.

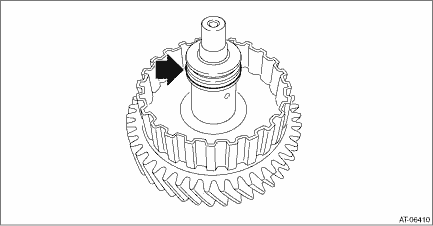

6. Remove the seal ring from the transfer driven gear assembly.
