Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the air breather hose. Air Breather Hose > REMOVAL

3. Remove the control valve body. Control Valve Body > REMOVAL

4. Remove the transmission harness. Transmission Harness > REMOVAL

5. Remove the turbine speed sensor. Turbine Speed Sensor > REMOVAL

6. Remove the secondary speed sensor. Secondary Speed Sensor > REMOVAL

7. Remove the primary speed sensor. Primary Speed Sensor > REMOVAL

8. Remove the inhibitor switch. Inhibitor Switch > REMOVAL

9. Remove the extension case. Extension Case > REMOVAL

10. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

11. Remove the transfer driven gear assembly. Transfer Driven Gear > REMOVAL

12. Remove the parking pawl. Parking Pawl > REMOVAL

13. Remove the reduction driven gear assembly. Reduction Driven Gear > REMOVAL

14. Remove the oil pan and oil strainer. Oil Pan and Strainer > REMOVAL

15. Remove the transmission control device. Transmission Control Device > REMOVAL

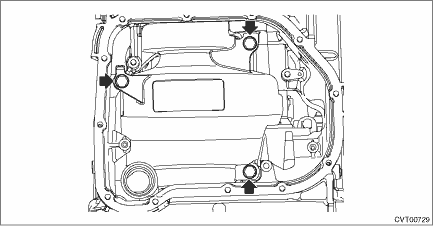

16. Remove the oil baffle securing bolt.

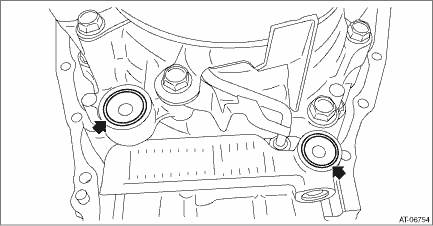

17. Remove the oil cooler pipe. (With CVTF cooler (air cool))

18. Remove the CVTF cooler pipe COMPL. (With CVTF cooler (air cool)) CVTF Cooler Pipe and Hose > REMOVAL

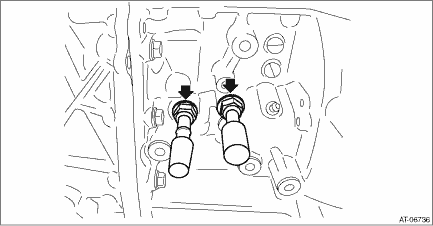

19. Remove the oil cooler pipe. (Without CVTF cooler (air cool))

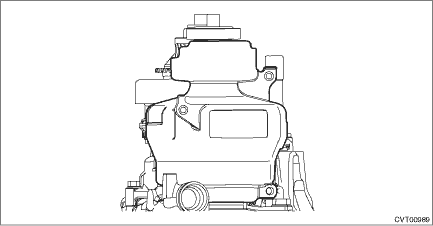

20. Remove the transmission case.

NOTE:

The total number of transmission case mounting bolts is 15.

21. Remove the oil baffle.

22. Remove the O-rings.

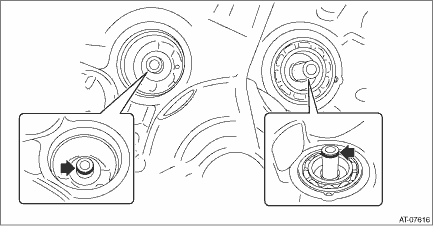

23. Remove the seal rings.

Transmission case
...

Adjustment
NOTE:When replacing the transmission case with a new part, perform the following check and adjustment for the selection.• Select the transfer driven gear shim. Transfer Clutch > ADJUSTMENT&bull ...
