Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

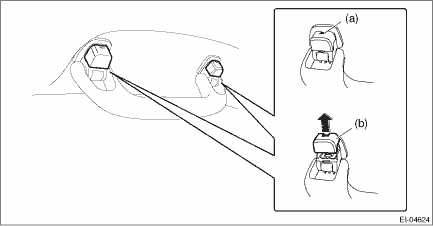

1. Pull up the cap (b) while pulling the knob (a) toward you with a flat tip screwdriver or similar tool wrapped with a protection tape. 2. Pull the assist grip toward yourself (toward the vehicle center) to remove.
|
Assist grip
...
Installation
1. Pinch the metal clip with pliers, and remove it from the assist grip BRKT.2. Install the metal clip to the assist grip side.3. Install the cap to the assist grip.NOTE:If the metal clip is not inser ...
Other materials:
Disassembly
1. TRANSFER CASE1. Remove the interlock plate.NOTE:Do not remove the precoat bolt (B) if the parts are assembled as a transmission assembly.(A)Interlock plate(B)Precoat bolt2. Remove the shift link assembly. Shift Link Assembly > REMOVAL2. EXTENSION CASE1. Remove the transfer drive gear assembly. ...
