Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Roof molding / Removal

CAUTION:

• Be careful not to damage the body.

• Do not remove the clip - roof molding.

• If the clip - roof molding is damaged, replace it with a new clip.

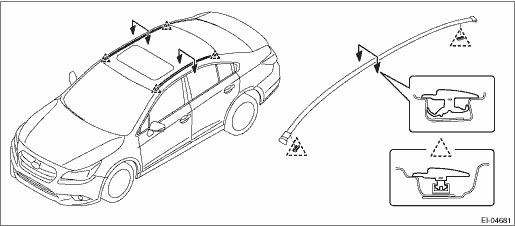

Release the clips, and remove the molding - roof.
