Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h4do) / Camshaft position sensor / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the air intake duct. (RH side only) Air Intake Duct > REMOVAL

3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.

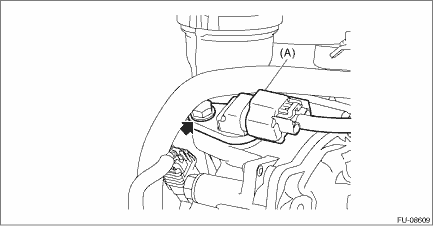

• RH side

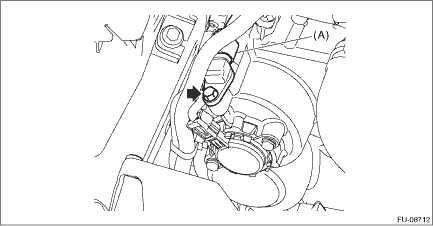

• LH side

1. CAMSHAFT POSITION SENSOR1. Disconnect the ground terminal from battery sensor. NOTE2. Prepare an oscilloscope.3. While pressing the section (A) shown in the figure, move the lock lever (B) in the ...
