Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Control unit / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the pocket assembly and the back panel - pocket. Glove Box > REMOVAL

3. Remove the control module.

(1) Disconnect the connector.

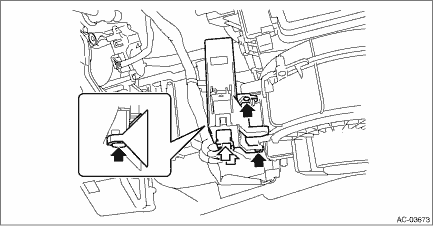

(2) Remove the screws, and remove the control module.

Installation

1. Install the control module.2. Install the pocket assembly and the back panel - pocket.3. Connect the ground terminal to battery sensor. NOTE ...
