Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Fresh recirc door actuator / Removal

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the instrument panel assembly. Instrument Panel Assembly > REMOVAL

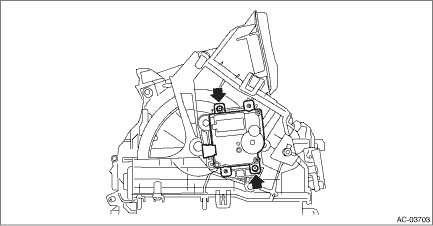

3. Remove the screws and detach the motor - actuator blower.

1. ACTUATOR LINK1. Visually check the operating range of the link, and remove the foreign matter if any.2. Operate the FRESH/RECIRC switch, and check that the link operates normally.3. If it does not ...
