Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Room light / Removal

NOTE:

Do not remove the room light if removing the bulb only.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the light assembly - room.

(1) Remove the clips, and then remove the hook.

(2) Disconnect the connector and remove the light assembly - room.

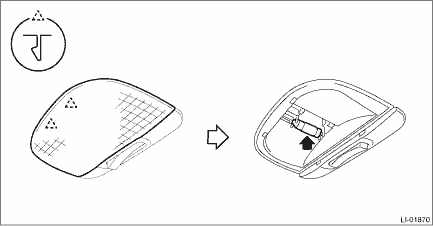

3. Release the claws, and detach the lens and bulb.

CAUTION:

• Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

• When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
