Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Trunk room light / Removal

NOTE:

Do not remove the trunk room light if removing the bulb only.

1. Disconnect the ground terminal from battery sensor. NOTE

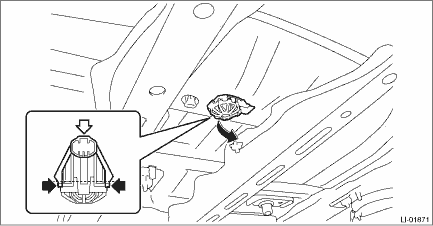

2. Remove the light assembly - trunk room.

(1) Release the claws.

(2) Disconnect the connector and remove the light assembly - trunk room.

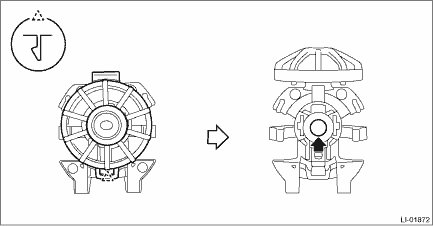

3. Release the claws to open the bulb cover, then remove the bulb.

CAUTION:

• Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

• When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
