Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

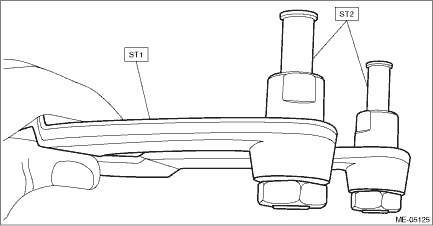

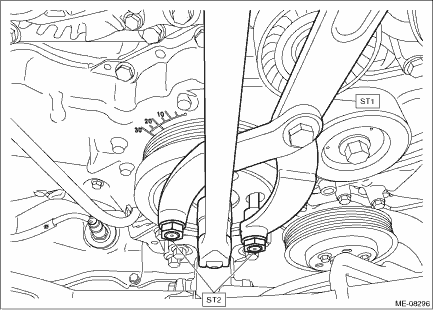

NOTE: When replacing a single part, perform the work with the engine assembly installed to body. 1. When working on the vehicle NOTE: When working on the vehicle, perform the following steps also. (1) Remove the air intake duct. Air Intake Duct > REMOVAL 2. Remove the V-belts. V-belt > REMOVAL 3. Use the ST to lock the crank pulley, and remove the crank pulley bolt. NOTE: To prevent damaging ST1, attach the ST2 onto the ST1 as shown.

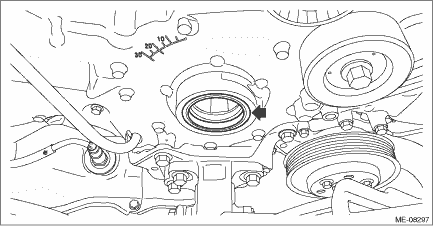

4. Remove the crank pulley. 5. Remove the front oil seal from the chain cover.
|
Crank pulley
...
Inspection
1. Check that the crank pulley has no deformation, cracks or other damages.2. Inspect for oil leakage from the front oil seal. If there is an oil leak, replace the front oil seal with a new one. Cran ...
