1. FRONT CUSHION RUBBER AND ENGINE MOUNTING BRACKET

1. Fully open the front hood. NOTE

2. Disconnect the ground terminal from battery sensor. NOTE

3. Remove the air intake duct. Air Intake Duct > REMOVAL

4. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

5. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move it to the left side wheel apron.

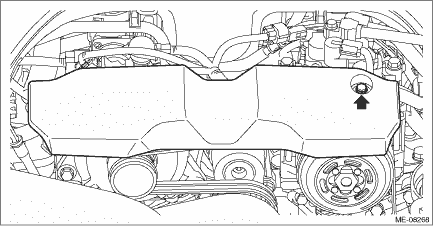

6. Remove the V-belt covers.

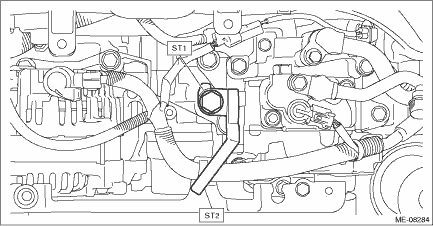

7. Using the ST1, install the ST2 to the engine unit.

ST1 18363AA050

BOLT

ST2 18360AA040

HANGER

Tightening torque:

43 N·m (4.4 kgf-m, 31.7 ft-lb)

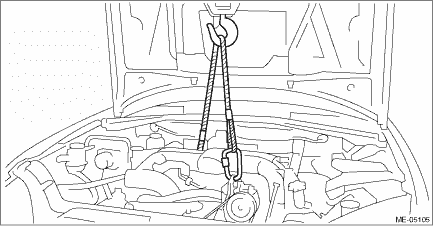

8. Support the engine with a lifting device and wire ropes.

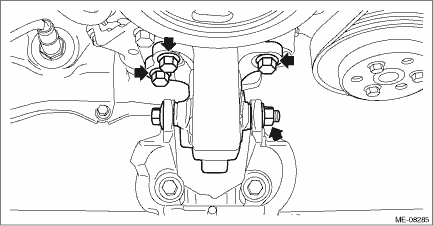

9. Remove the front cushion rubber from the front mounting bracket and engine mounting bracket.

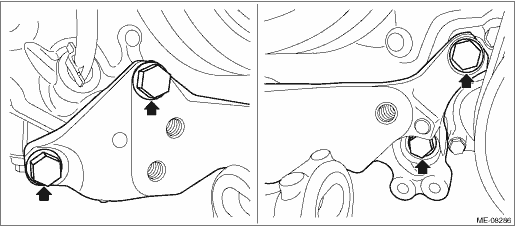

10. Remove the engine mounting bracket from the engine assembly.

2. FRONT MOUNTING BRACKET

1. Remove the radiator fan and fan motor assembly. Radiator Fan and Fan Motor Assembly > REMOVAL

2. Remove the front cushion rubbers. Engine Mounting > REMOVAL

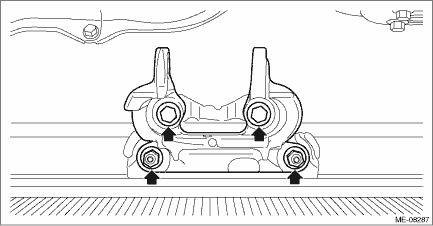

3. Remove the front mounting bracket.

Inspection

Check that the engine mounting does not have deformation, cracks and any other damage. ...
