Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Access buzzer / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

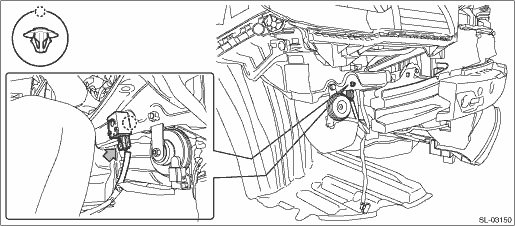

2. Remove the access buzzer.

(1) Remove the clips, and turn over the mud guard - front.

(2) Disconnect the connector.

(3) Remove the clip and detach the access buzzer.

Inspection

Using the Subaru Select Monitor, perform forced operation of the access buzzer. User Customizing > OPERATIONIf the buzzer does not sound, replace the access buzzer. ...
