Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Front door latch and door lock actuator assembly / Removal

1. Raise the glass assembly - front door to the top position.

2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

3. Remove the trim panel - front door. Door Trim > REMOVAL

4. Remove the sealing cover - front door. Front Sealing Cover > REMOVAL

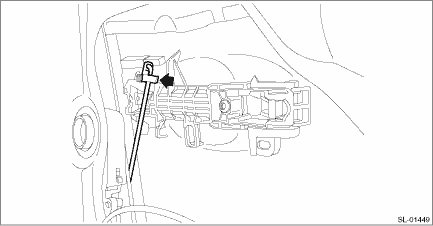

5. Remove the rod clamp and remove the rod.

6. Remove the sash COMPL - lower.

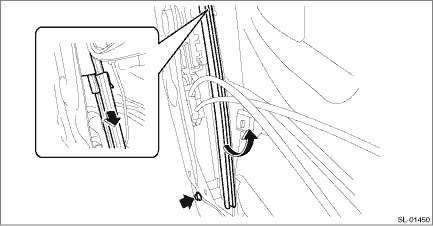

(1) Remove the lower side of the running channel - front door.

(2) Remove the bolts, and remove the sash COMPL - lower.

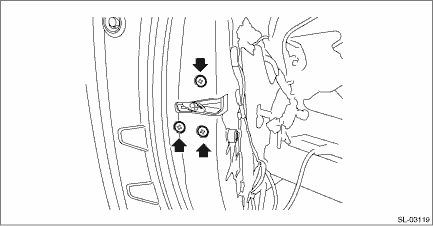

7. Remove the screws to remove the latch & actuator assembly - front.
