Subaru Legacy Service Manual: Removal

1. Open the front hood.

2. Remove the air intake duct. Air Intake Duct > REMOVAL

3. Remove the bumper face - front. Front Bumper > REMOVAL

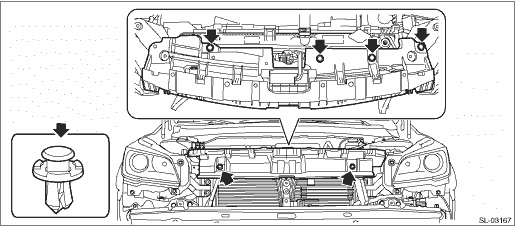

4. Remove the bracket - grille.

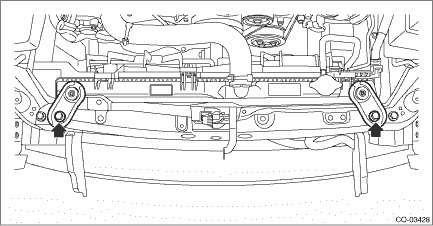

5. Remove the radiator upper brackets.

6. Remove the lock assembly - front hood.

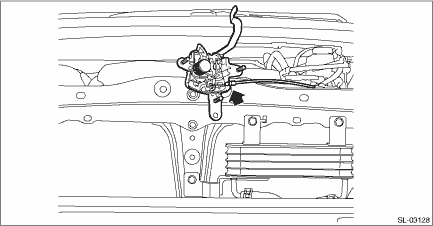

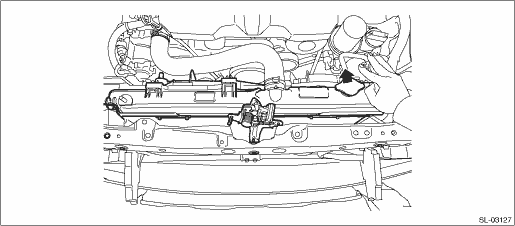

(1) Remove the nuts and clips, and push the radiator to the rear to pull out the lock assembly - front hood through the clearance.

(2) Disconnect the release cable, and detach the lock assembly - front hood.


When disconnecting the release cable, refer to “FRONT HOOD OPENER” of “Remote Openers”. Remote Openers > REMOVAL

Front hood lock assembly

1. Remove the bumper face - front. Front Bumper > REMOVALNOTE:Remove the bumper face - front only at the first adjustment.2. Remove the center ring clip from the lock assembly - front hood.NOTE:Remov ...
