Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

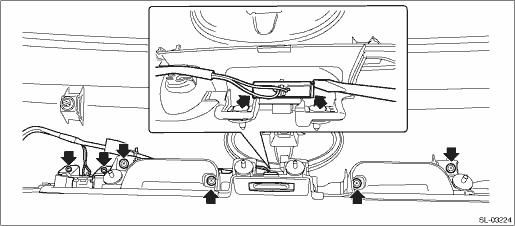

NOTE: • The rear lock button is integrated with the switch - opener rear gate. • Open the panel - rear gate before disconnecting the ground terminal from battery sensor. 1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the trim panel - rear gate. Rear Gate Trim > REMOVAL 3. Remove the garnish assembly - rear gate. Rear Gate Garnish > REMOVAL 4. Remove the rear lock button. (1) Remove the garnish switch bracket from the garnish assembly - rear gate. (2) Release the locks at both ends of the button - opener rear gate by pushing them with a flat tip screwdriver, and remove the button - opener rear gate. (3) Remove the screws and detach the rear lock button.
|
Rear lock button
...
Inspection
1. Using the Subaru Select Monitor, display «Rear gate/Trunk UNLOCK output» from «Data monitor».2. Check if the display changes when the rear lock button is operated.3. If the display is not corre ...
