Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Starting charging systems(h4do) / Battery sensor / Removal

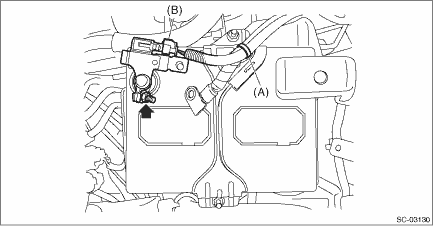

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the clip (A) from the battery holder.

3. Disconnect the connector (B) from the battery sensor, and remove the battery sensor.

Inspection

Check the battery sensor for deformation, cracks and any other damage. ...
