Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exhaust(h4do) / Center exhaust pipe / Removal

1. Lift up the vehicle.

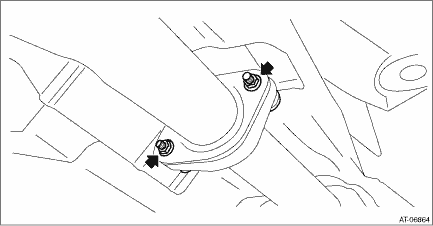

2. Remove the bolts, springs, and nuts securing the rear exhaust pipe to the center exhaust pipe.

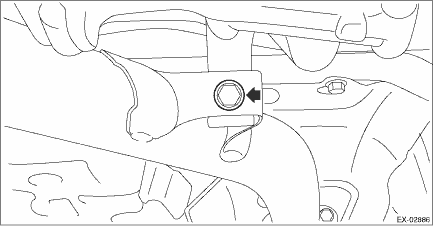

3. Remove the bolt which holds center exhaust pipe to hanger bracket.

4. Remove the center exhaust pipe from the front exhaust pipe.
