1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the arm assembly - windshield wiper. Front Wiper Arm > REMOVAL

3. Remove the cowl panel - side and the cowl panel assembly. Cowl Panel > REMOVAL

CAUTION:

Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.

4. Remove the link assembly - windshield wiper.

(1) Disconnect the connector of the motor assembly - windshield wiper.

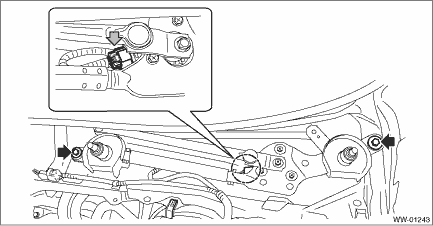

(2) Remove the bolts and harness clips, and remove the link assembly - windshield wiper.

5. Remove the motor assembly - windshield wiper.

(1) Using a crowbar wrapped with protective tape, disconnect the link assembly - windshield wiper from the link plate.

(2) Remove the bolts, and remove the motor assembly - windshield wiper.

1. Check that the following operations perform normally.CAUTION:Fix the motor to prevent the motor from being shorted by moving during operation.(1) When the battery is connected to the terminal of co ...
