Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Airbag system / Roll connector / Removal

CAUTION:

Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION

1. Position the front wheels straight ahead.

2. Turn the ignition switch to OFF.

3. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

4. Remove the driver’s airbag module. Driver’s Airbag Module > REMOVAL

5. Remove the steering wheel. Steering Wheel > REMOVAL

6. Remove the cover assembly - column. Steering Column > REMOVAL

7. Remove the roll connector.

CAUTION:

Make sure that the roll connector is not turned from the original position.

(1) Disconnect the connector under the roll connector.

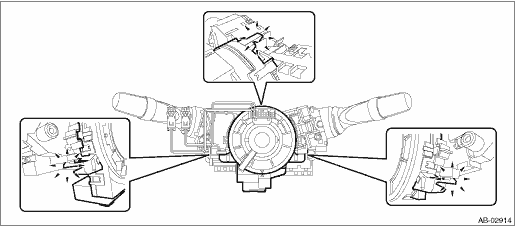

(2) Release the claws and remove the roll connector.

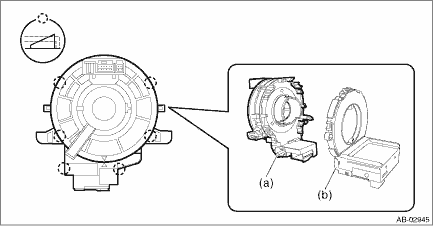

(3) Release the claws and separate the roll connector (a) and steering angle sensor (b).

Adjustment

CAUTION:• Do not rotate the roll connector to more than the specified number of turns. Otherwise, the roll connector internal wire may be broken.• When determining the end stop, rotate the ...
