Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Transfer clutch / Disassembly

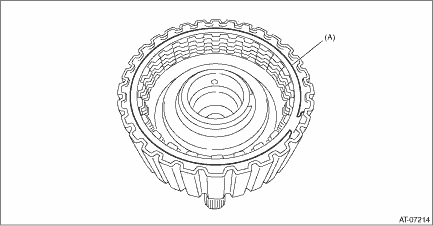

1. Remove the snap ring, and then remove the retaining plate, drive plate and driven plate.

(A)

Snap ring

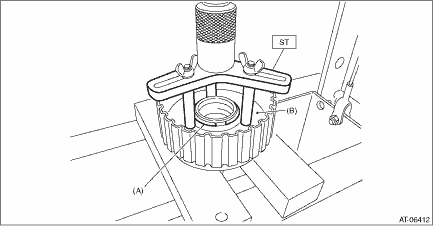

2. Compress the return spring using the ST to remove the snap ring.

ST 18762AA001

COMPRESSOR SPECIAL TOOL

(A)	Snap ring
(B)	Transfer clutch piston seal

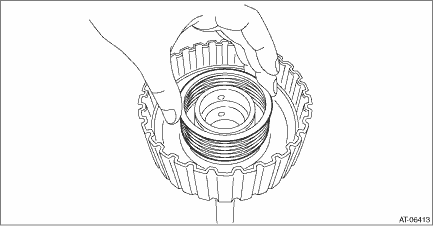

3. Remove the transfer clutch piston seal.

4. Remove the return spring.

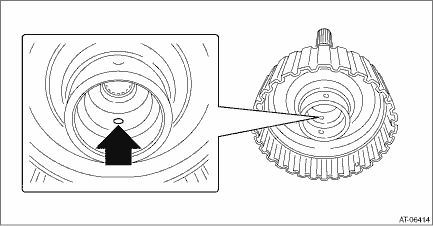

5. Remove the transfer clutch piston by blowing compressed air through transfer clutch assembly hole.

NOTE:

Plug the holes through which the compressed air is not blown.

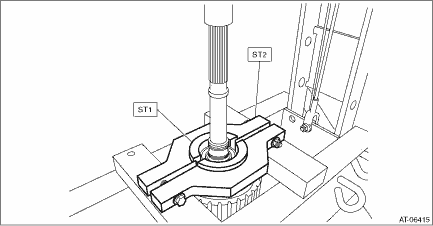

6. Remove the ball bearing using ST.

ST1 18767AA010

BEARING REMOVER

ST2 18723AA000

REMOVER
