Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. Before installation, check the steering gearbox. Electric Power Steering Gearbox > INSPECTION

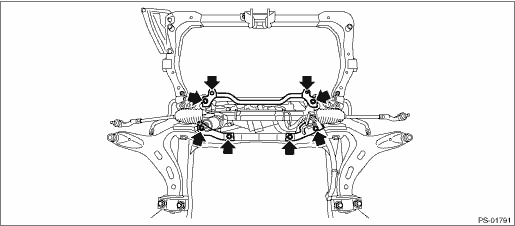

2. Install the steering gearbox assembly by tightening the bolts through the stiffener to the specified torque.

CAUTION:

Be careful not to damage the steering gearbox assembly boot.

Tightening torque:

60 N·m (6.1 kgf-m, 44.3 ft-lb)

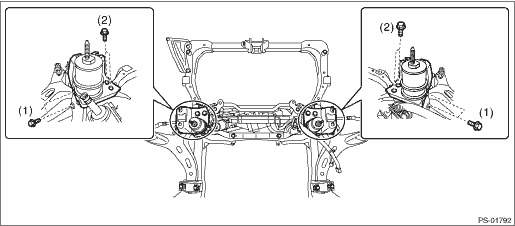

3. Install the main mounting bracket in the numerical order.

(1) Temporarily tighten the main mounting bracket in the numerical order.

Tightening torque:

10 N·m (1.0 kgf-m, 7.4 ft-lb)

(2) Tighten the main mounting bracket in the numerical order.

Tightening torque:

60 N·m (6.1 kgf-m, 44.3 ft-lb)

4. Install the cradle. Cradle > INSTALLATION

5. Install the universal joint assembly - steering. Universal Joint > INSTALLATION

CAUTION:

Install the cradle first before tightening the universal joint assembly - steering to avoid the steering effort from becoming heavy.

Always install the universal joint assembly - steering after installing the steering column to avoid damage to the universal joint assembly - steering.

Be sure to follow the tightening order and tightening torque of the universal joint assembly - steering to avoid the steering effort from becoming heavy. After confirming that the steering column position is in the neutral position, tighten the universal joint assembly - steering.

Always place the tilt lever to the lock position after the steering column is adjusted.

6. Connect the ground terminal to battery sensor. NOTE

7. After adjusting toe-in and steering angle, tighten the lock nut on tie-rod end.

CAUTION:

When the wheel alignment has been adjusted, perform the following adjustment.

Lane keep assist learning value clear (model with EyeSight): Clear Active Lane Keep System Learning Value > OPERATION

VDC sensor midpoint setting mode: VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT

Tightening torque:

85 N·m (8.7 kgf-m, 62.7 ft-lb)

NOTE:

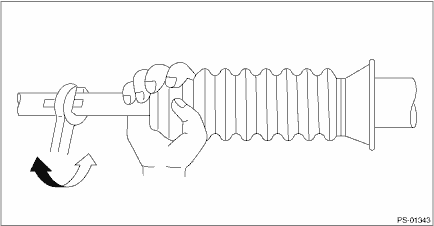

When adjusting toe-in, hold the boot - steering gearbox as shown to prevent it from being rotated or twisted. If it becomes twisted, straighten it.

Adjustment
1. GEARBOX BACKLASH ADJUSTMENT (SERVICING ON VEHICLE)1. Remove the under cover - front. Front Under Cover > REMOVAL2. Remove the front stabilizer and slide the front stabilizer. Front Stabilizer > R ...

Inspection
1. UNIT INSPECTIONCheck components for wear, damage or other faults. Adjust or replace if necessary.2. LIMITMake a measurements as follows. If it exceeds the specified service limits, adjust or replac ...
